flashing
The Euromax system is of medium robustness. Ideal for doors and windows due to its wide range of accessories and openings.
It can reach a maximum height of 2.7 meters. It admits float, laminated or chamber glass up to 36mm thick.
Technical description pdf
SLIDING
SYSTEM
Use:
.
Maximum sash height:
.
Maximum sheet width:
.
Sheet dimension:
.
Maximum glass thickness:
.
Safety:
.
Maximum weight:
Door and window
.
2700 mm
.
1100 mm
47 x 84 mm
.
36 mm
.
Unipoint / Multipoint
.
120 kg
* Recommended uses and measures.
OPENING OPTIONS
Folding door
Inner and outer opening
Allows rolling mesh
Folding door
Inner and outer opening
Allows rolling mesh
Fixed + Swing Door
Inner and outer opening
Allows rolling mesh
Fixed + Swing Door
Inner and outer opening
Allows rolling mesh
Hinged Door + Lateral Fixed
Inner and outer opening
Allows rolling mesh
Projectable Window
outside opening
Allows fixed or rolling mesh
Hinged or tilt-and-turn window
*Interior, exterior and tilt-and-turn opening allows fixed or rolling mesh
*Interior opening and tilt-and-turn only allows rolling mesh

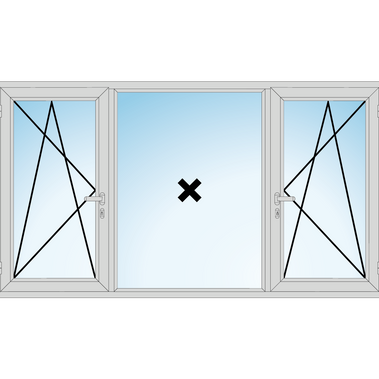

Fixed + Casement or Tilt&Turn Window
*Interior, exterior and tilt-and-turn opening allows fixed or rolling mesh
*Interior opening and tilt-and-turn only allows rolling mesh
Fixed + Hinged Window u Tilt&Turn
*Interior, exterior and tilt-and-turn opening allows fixed or rolling mesh
*Interior opening and tilt-and-turn only allows rolling mesh
Casement window
*Interior, exterior and tilt-and-turn opening allows fixed or rolling mesh
*Interior opening and tilt-and-turn only allows rolling mesh
Hinged Window + Side Fixes
*Interior, exterior and tilt-and-turn opening allows fixed or rolling mesh
*Interior opening and tilt-and-turn only allows rolling mesh
Fixed + Casement or Tilt&Turn Window
*Interior, exterior and tilt-and-turn opening allows fixed or rolling mesh
*Interior opening and tilt-and-turn only allows rolling mesh
EUROMAX ACCESSORIES
Description
Color / Code
side rotor
Black/ROT-ELL-X-SC-02
White/ROT-ELL-X-SC-02
Description
Color / Code
Central projectable rotor
Black/ROT-ELL-P-SC-02
White/ROT-ELL-P-SC-02
Description
Color / Code
Locking Arm
single point without friction
NA/LIM-009
Description
Color / Code
Non-locking friction arm, disengageable
NA/LIM-008
Description
Color / Code
Scissor Hinges 45 Kgs per pair
NA/BI-TJ-CE-NX-01
Description
Color / Code
Hinge 2 Blades Rapid 80 Kg
Black/BI-2P-CE-X-8
White/BI-2P-CE-X-7
Description
Color / Code
Scissor Hinges 80kg per pair
NA/AC-BI-TJ80-CE-NX-X
Description
Color / Code
Hinge Monster 2 120 Kg
Black/BI-2P-CE-XM-8
White/BI-2P-CE-XM-7
Description
Color / Code
Multi use cremone
Black / CRM-VITA-8
White / CRM-VITA-7
Description
Color / Code
Multipoint lock
NA / CER-M-30
Description
Color / Code
Multipurpose Cremone
with key
Black / CRM-VITAL-8
White / CRM-VITAL-7
Description
Color / Code
Single point lock
CER-U-3X
Description
Color / Code
GO handle
Black / MA-GO-8
White / MA-GO-7
Description
Color / Code
A.- Key cylinder key
B.- Butterfly key cylinder
C.- Key cylinder
D.- Butterfly Cylinder
A.- CI-XXL-XXL
B.- CI-XXM-XXL
C.- CI-10-XXL
D.- CI-10-XX-M
